Split type spherical roller bearing is a type of split type roller bearing, which adopts a split structure and can be installed separately, that is, the bearing can be replaced without disassembling the large gear. Split cylindrical roller bearings can significantly reduce bearing replacement time, lower equipment maintenance costs, and minimize production losses in subsequent processes.

Split cylindrical roller bearing is a special type of bearing that has a row of cylindrical rollers and inner and outer race raceways. The design of split cylindrical roller bearings is easy to install and disassemble, especially suitable for situations that require frequent disassembly or long shaft diameters. There is no need to disassemble the entire component, only the bearings need to be replaced in a short period of time, thus saving valuable downtime or even several days and reducing profit losses.

Deep groove ball bearings are a very common type of rolling bearing. This type of bearing has low frictional resistance and high rotational speed, and can be used on components that can withstand radial loads or combined loads of radial and axial forces.Deep groove ball bearings are easy to install and require less maintenance compared to other types of bearings. SVC provides you with various deep groove ball bearings, which can also be customized according to your needs.

Angular contact ball bearings mainly bear large unidirectional axial loads, and the larger the contact angle, the greater the load bearing capacity. SVC angular contact bearings are divided into single row angular contact bearings, double row angular contact bearings, and four point angular contact bearings.

Self aligning ball bearing is a rolling bearing with a spherical outer raceway. Self aligning ball bearings can withstand large radial loads and certain axial loads, and are mainly used in the mechanical industry fields such as papermaking machinery, textile machinery, automobiles, mining equipment, and precision instruments.

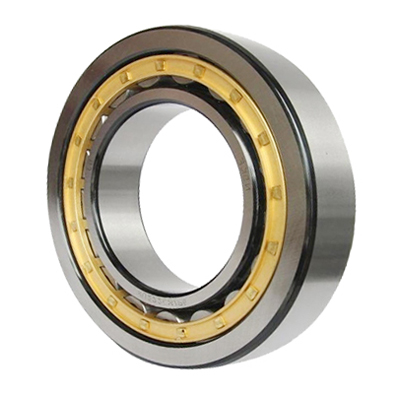

Cylindrical roller bearings have a high load capacity and mainly bear radial loads. The friction between the rolling element and the sleeve edge is small, suitable for high-speed rotation. Mainly used in large and medium-sized electric motors, locomotives, machine tool spindles, internal combustion engines, generators, gas turbines, gearboxes, steel mills, vibrating screens, and lifting and transportation machinery.

Cylindrical roller bearings have a high load capacity and mainly support radial loads. With low friction between the rolling elements and the ring ribs, they are suitable for high-speed rotation.

Spherical roller bearings can withstand large radial and axial loads. Spherical roller bearings can be used for wind turbine spindles, continuous casting machines, vibration applications, and high-speed applications. They can effectively help you reduce maintenance costs and extend the service life of bearings.

CARB circular roller bearings combine the self-aligning ability of spherical roller bearings, the infinite axial displacement characteristics of cylindrical roller bearings, and the compact cross-sectional characteristics of needle roller bearings. The application of recycled paper industry, wind power industry and other industries is very extensive.

Thrust ball bearings are divided into unidirectional and bidirectional types, consisting of gaskets with raceways, balls, and cage components. The raceway washer that matches with the shaft is called the shaft ring, and the raceway washer that matches with the housing is called the seat ring. This type of bearing includes unidirectional thrust ball bearings and bidirectional thrust ball bearings. Unidirectional thrust ball bearings can only withstand axial force in one direction and can limit axial displacement in one direction, while bidirectional thrust ball bearings can withstand axial force in two directions and can limit axial displacement in both directions. Neither can withstand radial loads. In addition to the structure with flat seat rings, there are also structures with spherical seat rings and seat cushions. The bearing has a high load capacity and a low limit speed.

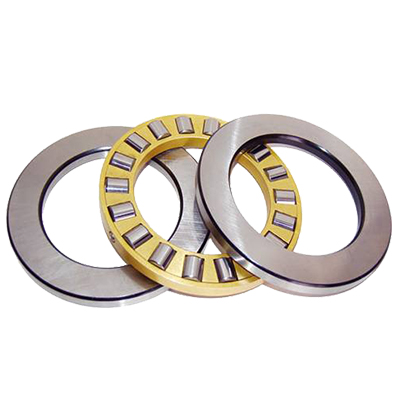

Cylindrical roller thrust bearings can withstand heavy axial and impact loads. This type of bearing cannot withstand any radial load. The bearing has high stiffness and only requires a small axial space.

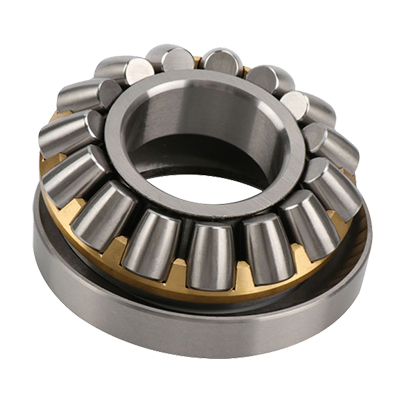

Spherical roller thrust bearings have specially designed raceways and asymmetric rollers. Bearings can withstand axial loads acting in one direction and radial loads acting simultaneously. The load is transmitted between the raceways through rollers at a certain angle to the bearing axis, while the retaining edge guides the rollers.
